Centrifuges for Paint Spray Booth sludge, Vibratory Finishing and Wastewater Treatment

Mars Tech offers new and used Microseparator® , Centriclean®, Bazell, Alfa Laval, (previously known "paint pig") basket centrifuge separators for the finishing industry.

Water wash Paint Spray Booth Sludge Removal
Water Curtain paint wastewater treatment
Paint Sludge separation and Dewatering
Vibratory and Tumbling Fluid Recycling
Wash and Rinse Water clarification
Grinding booth particle removal
Oil Water filtration and recycling
Maskant water cleaning and filtration

Click here to request a quote or more information

Fully Automatic self cleaning basket centrifuges

Binks, 100A, 150A, Centriclean C100, C150, Paint Pig P100, P150, CL 150, CL 100
Toto Separator, Alfa Laval TSK 100A, TSK 150A, Centri Clean
Microseparator® CF 65G, CF 105G, CF 155G, CF 175G
Bazell solids discharging separator CF 65G, CF 105G, 105 GX, CF 125 G, 125 GX, CF 155G, CF 175G
Mars Tech TSK 150A, TSK 100A, TSK 65A

No operator contact with the sludge. Requires no operator attendance during normal operation

Centrifugally separated and compacted solids are automatically discharged in to a 55- gallon drum or a suitable hopper under the centrifuge.

These machines can handle tough, abrasive, sticky and hard packing fines, where many other filtration techniques have failed.

Manually cleaned basket centrifuge

Designed for the continuous removal of particulates from industrial fluids. Available from 5 gpm to 50 gpm flow capacity.

Available basket separator models

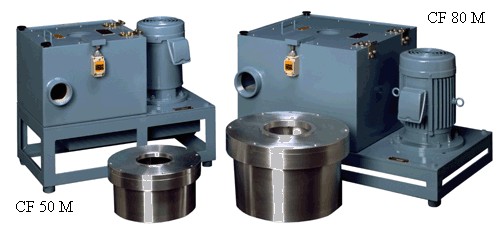

Removable, reusable rubber bowl liner 50M, C50, P50, CL 50
Removable, reusable Aluminum bowl liner 80M, C80, P80, CL80
Toto Separator TSK 30M, TSK 50 M, TSK 80 M
Alfa Laval TSK 30 M, TSK 50, TSK 80
Microseparator® CF 30M, CF 50M, CF 55M, CF 80M, CF 85 M
Bazell CF 55TK, 55 TKV, CF 55HD,CF 85-240, 85-150, CF 55SM, CF 85SM

The centrifuge is equipped with hinged cover and safety limit switch to de-energize drive motor when cover is opened.

Mars Tech offers centrifuges in the finishing industry for

Wash Fluids, Rinse Water Purification
Alfa Laval WSB 104, Alfie 400, Alfie 200
Pre Treatment before Ultrafiltration
Waterwash Paint Booth Waste Minimization
Plastics Recycling wash and rinse water cleaning
Phosphatizing Bath Purification
Vibratory Finishing Fluid Clarification
Oily Waste Recycling
Pretreatment Iron phosphate, Zinc phosphate

System recommendations for successful centrifuge results in paint booths:

Used, reconditioned, second hand Basket Centrifuges suitable for Finishing, Food, Chemical, and Industrial applications.

Factory reconditioned self cleaning CF 155G
Unused fully automatic TSK 100A
Unused Manually cleaned TSK 50M
Portable manually cleaned CF 80M
Used g force centrifuges, Binks Paint centrifuge (previously Centri Clean), Used Microseparator® Centrifuges
De Laval ATM, perforate and imperforate, top unload and bottom dump
Bazell Microseparator ®, Used Centrifuges
Clinton Separator, Barrett Clarifuge, AML liquid liquid solid separator

Just received Reconditioned CF 55M with control Panel

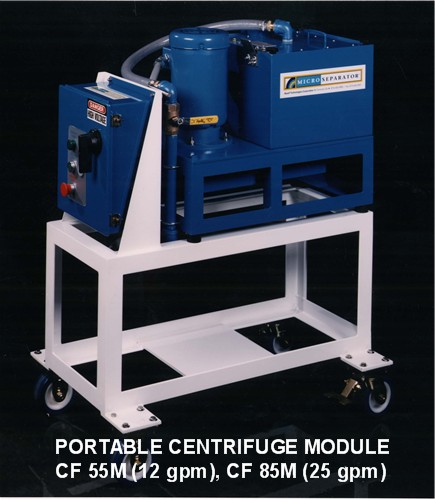

Portable CF 55M complete with centrifuge, pump, piping and controls

Fully automatic systems start at 10 gpm. No operator attendance is necessary. Centrifugally separated compacted sludge is automatically discharged in a hopper below the centrifuge.

Mars Tech has supplied hundreds of self cleaning, fully automatic and manually cleaned centrifuges for water wash paint spray booths and vibratory deburring fluid purification

Over 30,000 sold worldwide in 30 years

fully automatic, self cleaning centrifuge. CF 65G, CF 105G, CF 155G, TSK 100A, TSK 150A. Centrifugally separated and compacted sludge is autmatically discharged into a hopper bellow the centrifuge. No operator contact with the sludge is necessary.

CF 155G Fully Automatic centrifuge for paint spray booth sludge removal, coolant recycling and liquid solid separation

Available from flow capacity of 10 gpm to 75 gpm ( 40 to 300 liters per minute). Multiple centrifuge systems up to 300 gpm have been supplied.

Manual removal of separated solids in Aluminum Liner of CF 80M

Manual removal of separated solids in rubber liner of CF 30 and CF 50M

Models CF 80M, CF 85M are rated at 25 gpm and comes with a removable reusable metal liner of 3 gallons solids capacity.
Models CF 50M 55M use an easily removable, replaceable BUNA N Rubber liner insert of 1.8 gallon capacity for the collection of separated fines. The compacted solids are collected at the perimeter of this liner and are removed manually. The operation takes about 15 minutes.
