MARS TECH
Mars Tech offers Alfa Laval LAPX 404 used, secondhand, reconditioned high speed centrifuge for fermentation, cell harvesting, broth clarification, cell debris separation for biotech, pharmaceutical, food grade, chemical and specialty pilot plant, laboratory scale up and production separation and purification applications.

Mars Tech offers one self cleaning, fully automatic Alfa Laval LAPX 404 high g force disc bowl centrifuge with controls.

This centrifuge has proven excellent for:

  • Biotechnology
    • Cell Harvesting
    • Cell growth
    • Fermentation broth
    • Cell debris clarification
    • Inclusion body recovery
  • Pharmaceutical
    • Plasma Fractionation
    • Precipitate capture
    • Vaccines and serums
  • Chemical
    • Catalyst recovery
    • Sub micron separation
    • Pigments, dyes and toners

Click here to request a quote or more information

Alfa Laval LAPX 404 Clarifier Centrifuge for fermentation, cell harvesting, broth clarification, cell debris separation for biotech, pharmaceutical, chemical and specialty pilot plant, laboratory scale up and production separation and purification applications.

The used Alfa Laval LAPX 404 offered is a high g force, high performance centrifugal clarifier designed for pilot plant , laboratory, small scale production and scale up capabilities.

We can supply the LAPX 404 separator on a standard or expedited delivery schedule.

LAPX 404 Clarifier Centrifuge Specifications:

The centrifuge equipment offered is a used, as is or reconditioned, fully automatic, self cleaning, plug-in separation system.

Hygienic design

The piping has been designed with hygienic considerations
being the utmost importance.

All product-wetted parts in the separator are in high grade stainless steel.

Clamp connections are used on all process piping to allow complete disassembly.

Fully automatic solids ejecting dosing ring design for low product losses and drier solids

Alfa Laval´s patented low shear disk inlet is a standard feature on the LAPX 404

Technical Data: ALFA LAVAL LAPX 404

Click here to download the brochure

  • Self Cleaning, solids ejecting Bowl Centrifuge
  • Max Bowl Speed 9,600 RPM
  • G-force maximum 11,000 g's
  • Max. throughput capacity 4 m3/h, 17.6 GPM
  • Optional PLC control panel
  • Max. solids-handling capacity 33 l/h
  • Feed temperature range 0-100 oC
  • Stainless steel product contact areas
  • Installed motor power 3.3 kW
  • Noise level (ISO 3744 or 3746) 69 dB(A)
  • Discharge and closing liquid 0.5 l/discharge
Six month mechanical warrantee and start up services are available
Spacer Image
Mars Tech also offers other Alfa Laval and Westfalia centrifuges such as BTPX 205, SA 7, SA 14 for chemical, pharmaceutical and industrial separation, purification and recycling filtration applications.

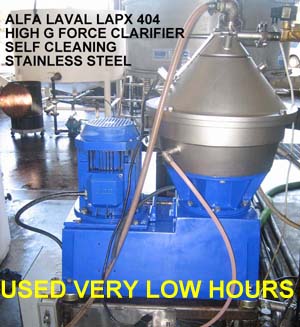

Alfa Laval LAPX 404 centrifuge
Also Available Westfalia CSC 6 rated at 100 liters per hour
Westfalia CSC-6-06-0476 Desludger Disc Centrifuge Bio-System. Stainless steel construction, clarifier design (liquid/solids separation), centripetal pump liquid discharge, direct drive, 3 HP drive motor, control, bio-system piping, pumps, vessels, valves all mounted on unitized base.

Scale-up possibilities

  • The LAPX 404 will allow biochemists to use centrifugal separators on small scale duties and be able to reliably scale up to production scale.
  • Antifoam fouling is not a problem for centrifugal separators, so frequent changing of parts is not an issue as it is for membranes.
  • The centrifugal separator can be used on a wide variety of biologicals because blinding of porous surfaces and subsequent flux reduction is avoided.
  • The intermittent self-cleaning feature means the solids handling capacity of the LAPX 404 is much higher than tubular bowl machines. This, in turn, gives more hygienic operation and less operator involvement.
